Drafting Tables & Adjustable Drawing Stations

A drafting table is not simply a desk with a bigger surface. The tilt is the entire point. Drawing or drafting on a flat surface forces the neck into sustained forward flexion and distorts your perspective on the work itself, since your eye and the paper are no longer aligned the way they are on an angled surface. A table without genuine tilt adjustment is an expensive flat desk wearing a drafting table's name.

This guide covers the actual specifications that separate a genuinely useful drafting table or adjustable drawing station from one that looks the part without delivering the function: tilt mechanism type, the correct angle range for your specific work, surface size matched to your paper format, and the structural details that keep a table stable once it is angled and loaded with equipment.

Tilt Mechanism Types Compared

Not all tilt mechanisms are built the same way, and the type matters as much as the angle range itself.

Manual tilt relies on a hand-adjusted mechanism, typically a lever or crank, to set and lock the angle. It offers moderate adjustability and strong durability at a lower cost, and suits artists, hobbyists, and budget-conscious buyers who set an angle once per session rather than adjusting repeatedly throughout the day.

Electric tilt adjusts at the push of a button, offering the highest practical adjustability since the low effort required means users actually change the angle as often as the task benefits from it. This is the right category for professional studios or any setup involving frequent angle changes throughout a working session. The same motor and frame quality signals that separate a reliable height-adjustable desk from a mediocre one apply just as directly to an electric drafting table's tilt mechanism.

Hydraulic tilt uses a fluid-based piston system for smooth, controlled adjustment, generally the most durable option and well suited to precision work where consistent, drift-free angle holding matters.

Fixed-slope tables offer a single, non-adjustable angle, which sounds like a limitation but is a deliberate, durable choice for a dedicated workstation performing one consistent type of task, such as an architectural office running the same drafting angle across every station.

Multi-angle or foldable designs prioritize flexibility or portability over raw durability, which suits students, home setups, or anyone with limited space who needs the table to adapt or store away between uses.

Matching Tilt Angle to Your Actual Work

This is the specification most buying guides treat as a single number, when it should actually be matched to the specific task.

0 to 30 degrees suits light sketching, writing, and reviewing plans, a modest incline that reduces neck strain for tasks that do not require the steeper angle more detailed work benefits from. This range works well for students and hobbyists doing lighter, less sustained sessions.

0 to 45 degrees is the standard range for genuine drafting and technical drawing, the angle most architects and engineers work at for line-heavy technical documents where precision and sustained visual alignment matter throughout a long session.

0 to 60 degrees suits illustration, fine art, and detailed rendering work, where artists benefit from a steeper incline that more closely approximates an easel angle for close, sustained visual work.

0 to 90 degrees covers specialized or genuinely vertical work, relevant for pedestal-style tables or specific disciplines that require a near-vertical working surface.

Buying a table with more tilt range than your actual work uses is not a meaningful upgrade. Buying one with less range than your work requires is a genuine limitation you will notice immediately. Whatever angle you choose, remember that the tilted surface still carries the same total equipment weight it would flat, monitor arm, tablet, reference material, so confirm the frame's rated capacity accounts for that load at your actual working angle, not just when the table sits flat and empty.

Surface Size: Matching the Table to Your Paper

Surface dimensions should be driven by the largest paper or drawing format you regularly use, not by how much desk space generally feels comfortable.

A useful rule of thumb: your table surface should extend roughly 1 to 2 inches beyond your paper's edges on every side, enough to work comfortably without the paper hanging off the surface, without buying meaningfully more table than your actual format requires.

Difference Between a Fixed Drafting Table and an Adjustable Drawing Station

A traditional drafting table solves the tilt problem and stops there. The surface angle adjusts, but the table's overall height typically does not, which means the table is set once for either a seated or standing posture and stays there regardless of what else changes throughout the day.

An adjustable drawing station combines that same tilt functionality with genuine height adjustment, allowing the entire working surface, not just its angle, to move between a seated drafting height and a standing height. This matters specifically for anyone alternating between drawing tasks and other work at the same desk throughout the day, since height adjustment lets the surface serve both a focused drawing session and a different task, like keyboard-based work, at each one's own correct height.

For the full breakdown of how this height-plus-tilt combination changes daily workflow, including a two-preset system for switching between drawing and reference tasks, see Why Creative Professionals Are Switching to Height-Adjustable Tables.

Parallel Bar and Straightedge Compatibility for Technical Work

This is a detail that matters specifically for architects and engineers doing genuine technical line work, and it is almost entirely absent from drafting table content written primarily for artists.

A parallel bar or drafting machine uses a cable-and-roller system that keeps a straightedge parallel to the table's top and bottom edges as it moves vertically across the surface, allowing precise, consistent parallel lines across a large drawing without manually repositioning a ruler for every line. If your work genuinely requires this level of technical precision, confirm the table's surface is rigid and dimensionally accurate enough to support this hardware correctly, since a surface with any flex or inconsistency undermines the parallel bar's accuracy regardless of how well the mechanism itself is built.

For illustration or general sketching work, this consideration does not apply, and a table without parallel bar compatibility is not a limitation for that use case.

Stability at Angle Matters More Than Stability When Flat

A table that feels solid when flat can behave differently once tilted and loaded with equipment, paper, reference material, or a tablet and monitor arm.

Confirm the tilt mechanism locks securely at your working angle without drift or gradual settling under load, and that the overall frame does not develop noticeable flex or wobble once the surface is angled. This matters more on an electric or hydraulic tilt table carrying real equipment weight than it does on a fixed-slope table built for one static angle, since the mechanism itself is now part of the structural load path, not just a static hinge.

What This Looks Like With VersaDesk

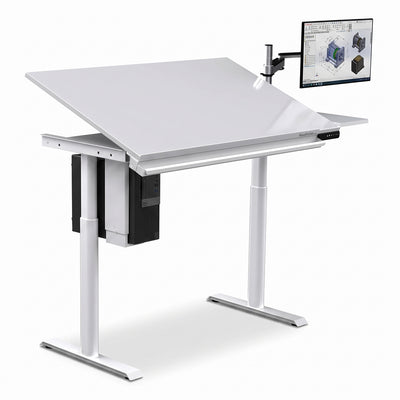

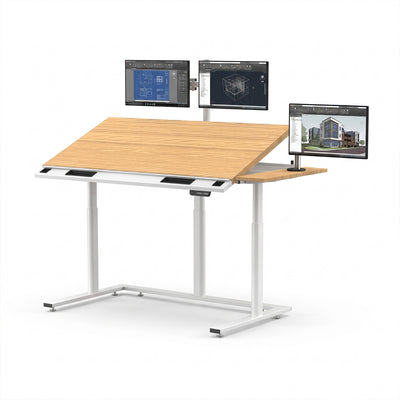

For a combined height-and-tilt adjustable drawing station, VersaDesk's PowerLift® Electric Drafting Table and PowerLift® Electric Triad Drafting Table provide electric tilt paired with genuine height adjustment, covering the combined category discussed throughout this guide.

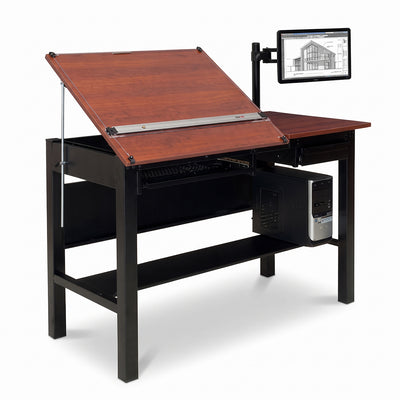

For a more compact or budget-conscious option, the Freedom Drafting Table covers the core tilt functionality without the full electric height range.

For accessories specific to a drafting workflow, VersaDesk's Triad Table Sliding Monitor arms let a reference display move independently across the tilted surface, the Triad Drafting Table Keyboard Drawer and Freedom Drafting Keyboard Drawer add keyboard positioning without consuming the primary drawing surface, and the Core Drafting Stool provides seating matched to a drafting table's specific height range.

The full Drafting Tables, Electric Drafting Tables & Adjustable Drawing Desks collection covers the complete range discussed in this guide.

Bottom Line

The tilt mechanism is what actually defines a drafting table, and matching its type and angle range to your real work matters more than surface size or price alone. A fixed-slope table serves one consistent task well and durably. An electric or hydraulic tilt table serves frequent adjustment across varied tasks. A genuinely combined height-and-tilt adjustable drawing station extends that flexibility to cover an entire workday's mix of drawing and other desk work, not just the angle of the surface itself.

Check the mechanism type, the angle range against your actual task, and the surface size against your actual paper format before anything else, and the rest of the buying decision becomes considerably more straightforward.

Frequently Asked Questions

What tilt angle should I get for a drafting table?

It depends on your work. Light sketching and reviewing plans generally work well at 0 to 30 degrees. Standard technical drafting and architectural work typically uses 0 to 45 degrees. Illustration and detailed rendering benefit from a steeper 0 to 60-degree range, closer to an easel angle. Specialized or vertical work occasionally uses ranges up to 90 degrees. Match the range to your actual task rather than assuming more tilt is automatically better.

What is the difference between a drafting table and an adjustable drawing station?

A traditional drafting table adjusts its surface angle but typically stays at one fixed height. An adjustable drawing station combines that same tilt functionality with genuine height adjustment, letting the entire surface move between seated and standing positions. This matters most for anyone using the same surface for both drawing tasks and other work, like keyboard use, throughout the day.

What size drafting table do I need?

Match the table to your largest regularly used paper format, with roughly 1 to 2 inches of surface margin beyond the paper's edges on each side. A 24-inch by 36-inch table suits paper up to 18 by 24 inches, a 30 by 42-inch table suits 24 by 36-inch sheets, and larger 37.5 by 48-inch or bigger tables suit architectural formats up to 30 by 42 inches or beyond.

Do I need a table compatible with a parallel bar or drafting machine?

Only if your work involves genuine technical line drawing requiring precise, consistent parallel lines across a large surface, common in architectural and engineering drafting. For illustration or general sketching, this compatibility is not necessary, and a table without it is not a limitation for that type of work.

What is the difference between manual, electric, and hydraulic tilt mechanisms?

Manual tilt uses a hand-adjusted lever or crank, offering solid durability at lower cost for less frequent adjustment. Electric tilt adjusts at the push of a button, making frequent angle changes practical throughout a working session. Hydraulic tilt uses a fluid-based piston system for smooth, precise, drift-free adjustment, generally the most durable option for demanding professional use.

Is a fixed-angle drafting table ever the right choice over an adjustable one?

Yes, specifically for a dedicated workstation performing one consistent task at one consistent angle, such as an architectural office running the same drafting setup across multiple identical stations. A fixed-slope table trades adjustability for durability and simplicity, which is the correct trade-off when the angle genuinely never needs to change.
