Dual Monitor Arm Buying Guide: Mounts, Stands & Adjustable Arms Compared

Every dual monitor arm buying guide on the internet eventually turns into a ranked product list. Number one pick, budget pick, premium pick, all sorted by star rating rather than by what actually determines whether the thing you buy solves your problem or ends up as a droopy, wobbly disappointment within three months.

The honest truth is that "dual monitor arm" is not one product category. It is three genuinely different approaches, mounts, stands, and adjustable arms, each solving the two-screen problem in a structurally different way, with different trade-offs for your specific desk, your specific monitors, and your specific room. This guide compares them directly, then walks through the technical details, weight math, and installation checks that actually determine whether your setup holds up.

How a Monitor Arm Actually Helps You

Before comparing mounting types, it is worth being specific about what a monitor arm actually changes, since the benefits go beyond simply lifting a screen off its stock stand.

It gives back desk space. Removing bulky monitor stands from the desktop frees up real surface area for documents, a keyboard tray, or simply a cleaner line of sight across the desk. This becomes more pronounced with a second monitor, since two stock stands take up considerably more room than two arm-mounted displays sharing a compact base.

It corrects posture at the source. A monitor arm lets you set the screen at the eye level and distance your body actually needs, rather than whatever fixed height the manufacturer's stand happens to produce. This is the single most consistent fix for the neck and shoulder tension that develops from looking slightly up, down, or too close at a screen for hours at a time.

It reduces eye strain from glare and reflection. Because an arm lets you adjust both height and angle independently, you can tilt a screen away from an overhead light or a window without having to relocate the entire desk.

It makes repositioning effortless. Switching between focused work, a presentation, or sharing your screen with someone beside you becomes a quick adjustment rather than a full reset of your desk setup.

It simplifies cable management. Most monitor arms include a built-in channel that routes cables along the arm itself, keeping cords off the desk surface and organized as the monitor moves through its range of motion.

It is especially valuable for dual-screen setups specifically, since the desk space and cable management benefits compound when you are managing two displays instead of one.

Types of Monitor Arms: A Spectrum From Fixed to Fully Flexible

Monitor arms are not a single design. They range across four general categories, distinguished by how much adjustment they actually offer once installed.

Pole-type fixed stands

hold a monitor at a set height and position with no ongoing adjustment mechanism. They are simple, stable, and inexpensive, but changing height typically requires physically disassembling part of the mount. These are the right fit only when your screen's position genuinely never needs to change.

A pole with an articulating arm

Keeps the base height fixed but allows the monitor to be pulled forward or pushed back along a single axis. This works well on desks with limited depth, or for anyone who wants to push a screen back against a wall when not actively working, without needing full height flexibility.

Fully articulated arms

provide height, depth, tilt, and swivel adjustment simultaneously, and are the right choice for anyone who repositions their screen throughout the day, whether for typing, presenting, or accommodating a second person viewing the screen. VersaDesk's Single Monitor Arms fall into this category for setups that need full flexibility on one screen at a time.

Multi-monitor arms

Are purpose-built for two or more displays sharing a single mounting structure, engineered specifically for the combined weight and spacing that a dual or triple monitor setup requires, rather than a single-monitor arm adapted after the fact. VersaDesk's Dual Monitor Arms collection is built specifically around this requirement.

For nearly any dual-monitor setup, a fully articulated multi-monitor arm delivers the most day-to-day value. The fixed and single-axis options above are worth considering only when your specific desk or workflow genuinely does not need ongoing repositioning.

Mounts vs. Stands vs. Arms: The Real Comparison

Clamp and grommet mounts

Attach a dual-monitor arm assembly directly to the desk edge or through a pre-drilled hole. This is the most common configuration for dual monitor setups, since it delivers the full range of height, depth, tilt, and swivel adjustment while occupying the least desk surface area of any option.

Freestanding or pole-based stands

Rest on the desktop itself, using a weighted base rather than clamping to the desk edge. These are the right choice when your desk edge cannot support a clamp, whether due to thickness, material, or an obstruction underneath, but they occupy more desk surface than a clamped arm and are more exposed to accidental bumps.

Fully adjustable articulating arms

Refer to the joint mechanism itself rather than the mounting method, and can be paired with either a clamp, grommet, or freestanding base. These provide independent height, extension, tilt, and rotation for each monitor, and are the correct choice for anyone who repositions their screens throughout the day, switching between typing, presenting, or sharing a screen with someone beside them.

For the large majority of dual monitor setups, a clamp-mounted, fully articulating arm system delivers the best combination of stability and adjustability. See the full Monitor Arms collection for the range of options across this category. The exceptions below determine when a different approach is the right call.

Can Your Desk Support a Monitor Arm? Five Installation Options

Before choosing an arm, confirm your desk can physically accommodate one, since this eliminates a real share of returns and disappointing installs. Most dual monitor arms support several of the following installation methods, and the right one depends on your specific desk and wall conditions. If you're also sizing the desk itself, see What Size Standing Desk Do You Actually Need? for the depth and clearance math that affects both.

1. Clamp Installation

If your desk has at least 2 inches of clearance between the back edge and any wall behind it, with no obstructions underneath, clamp mounting is the most flexible and commonly recommended option. It requires no drilling, causes no permanent damage to the desktop, and allows easy repositioning later.

Edge shape and thickness

A beveled or rounded edge exceeding roughly 1 inch of radius reduces clamp grip significantly. Confirm your desk's edge profile and thickness fall within the clamp's stated supported range before assuming any clamp fits.

Under-desk obstructions.

Crossbars, built-in drawers, cable trays, and modesty panels positioned near the desk edge can physically block the clamp's tightening hardware, a detail that kills an otherwise perfect installation. Check underneath your specific mounting location, not just the desk's general specs, before buying.

Tabletop material.

Glass, hollow-core (honeycomb) desktops, and surfaces prone to denting do not reliably support a standard clamp's compression force. If your desktop falls into any of these categories, look for an arm that includes a reinforcement plate, or plan to add one separately, which distributes the clamping force across a wider area of the desktop.

2. Grommet or Clamp Installation With Cable Holes

If your desk sits flush against a wall but already has a built-in cable grommet hole, commonly around 2.5 inches in diameter, or 1.6 to 2 inches on custom furniture, you can often thread cables through the existing hole and use either a clamp or a dedicated grommet mount, depending on the hole size and the arm's base design. This avoids the need for any new drilling.

3. Through-Desk Installation

If your desk is flush against a wall with no existing cable holes, or if under-desk obstructions rule out a clamp entirely, a through-desk grommet installation involves drilling a new hole for the mounting hardware. This is a more permanent modification, so confirm the mounting position meets your needs before drilling, and avoid this method entirely on fragile materials like glass or natural stone, where drilling risks irreversible damage.

4. Standing or Freestanding Mount

For monitors or desks that are not compatible with either clamp or grommet mounting, a standing base that rests directly on the desktop is often the remaining option. No drilling and no clamping are required, but the base occupies more desk surface area than a clamped arm, and the added footprint is worth weighing against the desk space savings that are usually the point of adding an arm in the first place. VersaDesk's Pole Mount Spider Monitor Arm uses this freestanding approach while still allowing each screen to be positioned independently.

5. Wall Mount

If your desk itself is not suitable for any of the above, or if typing vibration causes noticeable wobble in a desk-mounted arm, a wall-mounted arm attaches directly to the wall rather than to the desk at all. This delivers the most stability of any option, since it is entirely decoupled from anything happening at desk level, and it frees the full desktop surface with no mounting hardware on it whatsoever. The trade-off is a wall installation requiring drilling into the wall itself, and less flexibility if you later want to move the setup to a different desk or room.

If your desk fails the clamp and grommet checks entirely, a standing mount or wall mount becomes the more reliable path forward.

VESA Compatibility: The Non-Negotiable Starting Point

VESA, the Video Electronics Standards Association, defines the Flat Display Mounting Interface, the standardized screw-hole pattern on the back of your monitor. The two dominant patterns are 75x75mm and 100x100mm, and nearly every dual monitor arm ships with an adapter plate covering both.

A few specific exceptions are worth checking directly:

Larger displays and TVs sometimes use a 200x200mm pattern, requiring a separate adapter not always included with a standard dual arm.

Older or smaller monitors occasionally use a 50x50mm pattern, which is less commonly supported out of the box.

Apple displays and iMacs are only mountable if they use the VESA-compatible version of the hardware. Models with a fixed, built-in stand cannot be converted to a mounted setup at all.

Ultrawide and curved monitors occasionally use non-standard or manufacturer-specific mounting patterns. Confirm the adapter plate fits both your specific monitor and your chosen arm before ordering.

Real Weight Math for Two Monitors

Weight capacity is where most dual monitor arm purchases go wrong, and the calculation is more specific than simply matching a number on a spec sheet.

Check the per-arm capacity, not a combined total. Most quality dual arms rate each arm independently, commonly in the 17.6-pound (8 kg) range for standard 27 to 32-inch monitors. Confirm your heaviest monitor's actual weight, excluding its stock stand, against this per-arm figure with real margin.

Account for curved monitors specifically. A curved display's center of gravity sits further forward than a flat panel of the same size, which functions like added effective weight on the arm's tilt joint. Add a buffer of roughly 4.4 to 6.6 pounds when calculating total load for a curved monitor.

Account for attached accessories. A monitor light bar (roughly 1.1 lbs), a webcam (roughly 0.7 lbs), or a clip-on fill light (roughly 1.1 lbs) all add to the arm's effective load and are frequently left out of buyers' weight calculations entirely.

Respect the minimum weight as much as the maximum. This is the detail almost every buying guide skips. Spring-based arms are calibrated for a specific weight range, and a monitor too light for the arm's minimum rating produces the opposite problem from sagging: the screen floats upward and resists staying in a lowered position. Avoid over-specifying a heavy-duty arm for a genuinely lightweight monitor.

Leave real margin on both ends. A common guideline is 2.2 to 4.4 pounds of buffer below the arm's maximum rating, not just above your monitor's weight. Running an arm at its absolute ceiling accelerates wear on the tension mechanism regardless of which direction the margin runs out.

One Dual-Arm Crossbar vs. Two Independent Arms

This decision matters more for a genuine dual-monitor setup than most buying guides acknowledge.

A linked crossbar system, where both monitors mount to a single connected bar, tends to offer excellent stability for two similarly sized, similarly weighted monitors, since the load is distributed evenly across a rigid connecting structure. The trade-off is that adjusting one monitor's height often shifts the other.

Two genuinely independent arms, each with its own separate gas spring and joint, handle mismatched monitor setups considerably better, for example, one 32-inch primary display paired with a smaller 24-inch secondary screen. Independent arms let each monitor find its own correct height and angle without affecting the other, which becomes especially relevant if your two monitors are different sizes, weights, or orientations.

For most identical dual-monitor setups, either configuration works well. For mismatched setups, independent arms are the more reliable choice.

Preventing and Fixing Sagging

Sagging is the most commonly reported dual monitor arm complaint, and it originates from one of two specific points.

The tilt joint, where insufficient tension allows the monitor to droop forward over time. The upper arm joint, where insufficient tension allows the entire arm to sink downward under the monitor's weight. Both are usually fixable by tightening the arm's tension adjustment screws, typically using an Allen wrench, in small increments rather than all at once, since overtightening risks damaging the joint hardware.

If tightening does not resolve persistent sagging, the arm is very likely operating at or beyond its actual weight capacity for your specific monitor and accessory load, and no amount of tension adjustment fully compensates for that mismatch.

Spring-based tilt joints generally outperform basic friction-based joints for long-term durability, since a friction joint relies purely on surface resistance that wears down with repeated adjustment, while a spring mechanism actively counteracts gravity and maintains tension over a longer service life.

Cable Management for a Dual-Arm Setup

A dual monitor arm needs to accommodate two full sets of cables moving through the arm's complete range of motion without pulling taut at any extension or angle.

For setups you adjust frequently throughout the day, leave generous slack in each cable run, particularly for larger or ultrawide displays where the arm's extension range is greater. For a more stationary dual-monitor setup that rarely moves once positioned, shorter, tidier cable runs keep the desk looking clean without sacrificing function. Most quality dual arms include a built-in cable channel running along the arm itself, capable of managing three to four cables per monitor, power, video, and often a USB pass-through.

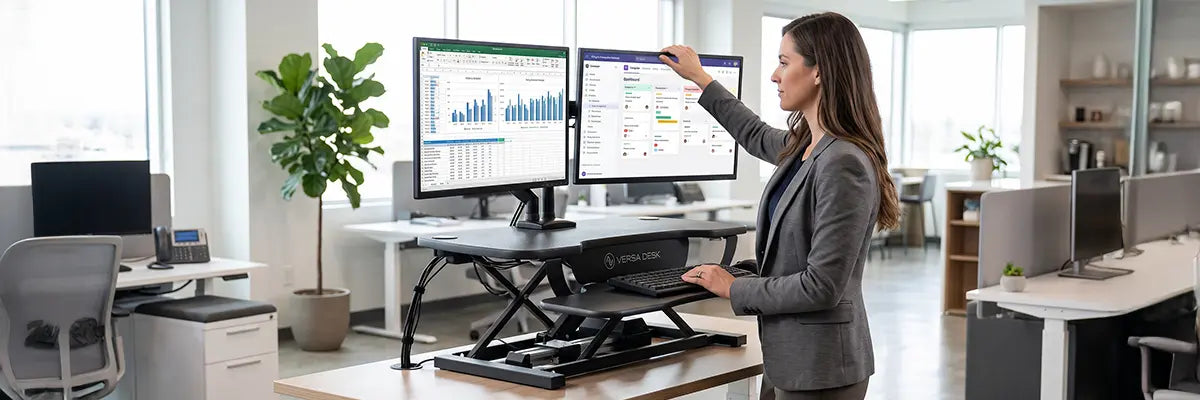

Detail Every Other Guide Misses: Standing Desk Integration

This is the consideration that separates a dual monitor arm setup that works only at one desk height from one that works correctly whether you are sitting or standing, and it is the reason a monitor arm matters even more on a height-adjustable desk than on a fixed one.

When a height-adjustable desk moves from sitting to standing height, typically a 15 to 20 inch vertical range, any monitor mounted on a fixed stand rises exactly the same distance the desk moves. A monitor arm decouples the screen's position from the desk surface entirely, letting you set the correct eye-level height independently in both the sitting and standing position, then return to each preset instantly.

For a dual monitor arm specifically, this matters twice over, since both screens need to maintain correct eye level and viewing distance across the desk's full height range, not just one. Confirm your chosen arm's own vertical adjustment range is generous enough to accommodate both your seated and standing eye level, on top of whatever range the desk itself provides.

For the full method of calculating equipment weight, including how a dual monitor arm's weight factors into your desk frame's total rated capacity, see Standing Desk Weight Capacity: Why It Matters More Than Most People Think.

What This Looks Like With VersaDesk

For a dual-monitor setup on a single mounting point, VersaDesk's MotionArc™ Monitor Arm – Dual and OmniView Monitor Arm – Dual are engineered specifically for two displays sharing a coordinated mounting structure, with the height, tilt, and swivel range needed to maintain correct positioning across a standing desk's full height adjustment.

For mismatched monitor setups, or anyone who wants each screen to move completely independently, pairing two of VersaDesk's Single Monitor Arms provides that flexibility directly.

For heavier or curved displays where the weight math in this guide points toward extra margin, VersaDesk's Heavy Duty Dual Monitor Arm, part of the broader Heavy Duty Monitor Arms collection, is built with the additional weight and torque tolerance a genuinely heavy dual-monitor array requires.

For three or more monitors, or setups where a pole-mounted freestanding base is the better fit for your desk, VersaDesk's Pole Mount Dual Spider Monitor Arm and Pole Mount Spider Monitor Arm consolidate mounting to a single stable column.

The complete range is browsable through VersaDesk's Dual Monitor Arms and Monitor Arms collections.

For desks specifically built to carry the combined weight of a dual monitor arm setup alongside other equipment, see Heavy Duty Standing Desks, Large Standing Desks & Multi Monitor Desks.

Bottom Line

A dual monitor arm is not a single product category with a best overall pick. It is a decision between three genuinely different mounting approaches, each suited to different desk conditions, and within that decision, a set of weight, VESA, and joint specifications that determine whether the arm you choose holds up under daily use or starts sagging within a few months.

Check your desk before you check star ratings. Calculate your real monitor weight, including accessories and curved-display buffers, before assuming any arm's capacity number applies to your setup. And if you are running this on a height-adjustable desk, confirm the arm's range covers both your sitting and standing eye level, since that is the detail that makes a dual monitor arm actually work across your entire workday, not just at one fixed height.

Frequently Asked Questions

Should I get one dual-arm crossbar or two independent monitor arms?

A linked crossbar works well for two similarly sized, similarly weighted monitors, since the load distributes evenly across a rigid shared structure. Two independent arms are the better choice for mismatched setups, such as pairing a large primary display with a smaller secondary screen, since each arm adjusts without affecting the other.

What weight capacity do I need for a dual monitor arm?

Check the per-arm rating, not a combined total. Most quality dual arms rate each arm at roughly 17.6 pounds (8 kg) for standard 27 to 32-inch monitors. Add a buffer of 4.4 to 6.6 pounds for curved displays, and account for attached accessories like light bars or webcams, which typically add another 1 to 2 pounds combined.

Can a monitor be too light for a monitor arm?

Yes. Spring-based arms are calibrated for a specific weight range, and a monitor below the arm's minimum rating can cause the screen to float upward and resist staying in a lowered position, which is the opposite problem from sagging. Avoid pairing a heavy-duty arm designed for large or ultrawide displays with a genuinely lightweight monitor.

Why is my dual monitor arm sagging?

Sagging originates at one of two points: the tilt joint, where insufficient tension allows the monitor to droop forward, or the upper arm joint, where insufficient tension allows the whole arm to sink downward. Tightening the tension adjustment screws in small increments usually resolves it. If sagging persists after adjustment, the arm is likely operating at or beyond its actual weight capacity for your monitor and accessory load.

Do I need a different monitor arm for a standing desk?

Not a fundamentally different arm, but you do need to confirm the arm's own height adjustment range is generous enough to maintain correct eye level in both your sitting and standing positions, since a height-adjustable desk moves through 15 to 20 inches of vertical travel and the monitor needs to stay correctly positioned throughout that range, not just at one height.

What desk conditions prevent a clamp-mounted dual monitor arm from working?

A desk edge with less than 2 inches of clearance from a wall behind it, a beveled or rounded edge exceeding roughly 1 inch of radius, under-desk obstructions like crossbars or drawers blocking the clamp hardware, and glass, hollow-core, or easily dented tabletop materials all reduce or eliminate clamp mount viability. A freestanding stand or wall mount is the more reliable option when your desk fails these checks.

Is a wall-mounted monitor arm better than a desk-mounted one?

A wall mount offers the most stability of any installation option, since it is entirely decoupled from anything happening at desk level, including typing vibration that can occasionally cause a desk-clamped arm to wobble. The trade-offs are a more permanent installation requiring drilling into the wall, and less flexibility if you want to move the setup to a different room or desk later. For most standard setups, a properly installed clamp mount is stable enough, and a wall mount is worth considering specifically when desk-level wobble or desk compatibility is a genuine problem.
