"Electric drafting table" is a label that gets applied to two genuinely different products, and the difference matters more than most listings make clear. Some tables adjust both height and tilt at the push of a button. Others adjust height electrically and still require you to manually crank or lever the tilt angle, while marketing itself as electric on the strength of the height feature alone. Confirming which one you are actually buying is the first, and most commonly skipped, step in this category.
This guide covers what the motor configuration actually controls, why electric tilt behaves differently from electric height, and the specification almost no buying guide explains clearly: lift capacity and tilt capacity are frequently two entirely different numbers, not one.
The "True Electric" Distinction
Before comparing motor specifications, confirm what is actually motorized on the specific table you are considering.
A genuinely fully electric drafting table adjusts both height and surface angle at the push of a button, with no manual cranking or lever adjustment required for either function. A partially electric table motorizes only the height, leaving tilt as a manual adjustment, which is a meaningfully different product despite frequently being marketed under the same "electric" label. If switching from a flat digital workflow to a tilted hand-drawing position throughout your day matters to you, confirming both adjustments are genuinely electric, not just one, is the single most important check before anything else in this guide.
Height Motor Options: Single vs. Dual
This follows the same underlying mechanics as any height-adjustable desk, applied specifically to a drafting table's frame.
Single-motor systems typically support 150 to 200 pounds of lifting capacity, adjust at roughly 0.8 to 1.2 inches per second, and place the full lifting load on one motor. This is adequate for a lighter drafting setup, a single monitor or tablet, standard paper and drawing tools, without heavy peripheral equipment mounted to the surface.
Dual-motor systems typically support 220 to 350 pounds or more, adjust faster at roughly 1.2 to 1.7 inches per second, and distribute the lifting load across independently powered legs. This matters more on a drafting table than it might on a standard desk, since a tilted, loaded surface, paper, a monitor arm, reference material, places genuinely asymmetrical weight on the frame, and a dual-motor system handles that uneven load with meaningfully more stability than a single motor working alone.
For the full breakdown of how motor configuration affects frame stability more broadly, see How to Choose the Right Frame for Stability & Height Rage.
Why Electric Tilt Has Less Range Than Manual Tilt
This is the counterintuitive trade-off almost nobody explains, and it is worth understanding before assuming electric automatically means more capability across every specification.
Manual drafting tables commonly tilt through a range of 45 to 60 degrees or more, since a hand-operated lever or crank has direct mechanical leverage over the surface. Electric tilt mechanisms, by contrast, currently max out closer to 40 to 45 degrees in most commercially available tables, a real limitation of motorized tilt actuators at steeper angles rather than a design oversight. If your work genuinely requires an angle beyond roughly 45 degrees, an illustration-heavy workflow closer to an easel angle, for example, a manual tilt table may actually offer more range than an electric one, which runs directly against the assumption that electric adjustment is a strict upgrade over manual in every respect.
For the full breakdown of correct tilt angle by task, 0-30° for light sketching through 0-90° for specialized vertical work, see Drafting Tables & Adjustable Drawing Stations.
Dual Rating Nobody Explains: Lift Capacity and Tilt Capacity Are Different Numbers
This is the single most underdiscussed specification in this entire category, and it directly affects how you should read a product's weight rating.
Lift capacity measures the vertical, linear force a table's height motor can move. Tilt capacity measures rotational torque, an entirely different physical quantity, describing how much resistance the tilt motor can overcome while angling a loaded surface. These are genuinely separate numbers on a well-specified table, not one rating that applies uniformly to both functions. A real commercial example makes this concrete: one manufacturer's drafting table system is rated for 250 pounds of lifting capacity but only 150 foot-pounds of tilting torque, a meaningfully different figure describing a different kind of mechanical demand entirely.
The practical implication is straightforward: do not assume a table's advertised weight capacity applies equally to how much load you can have on the surface while actively tilting it. Confirm both figures separately, particularly if your workflow involves adjusting tilt angle while the surface is loaded with equipment rather than only when it is empty.
The same principle of checking your actual equipment weight against a frame's genuine rated capacity, with real margin, applies here; see Standing Desk Weight Capacity: Why It Matters More Than Most People Think.
Height Range: What Is Actually Standard
Across commercially available electric drafting tables, a height range in the 26 to 52-inch span is common, though specific products vary meaningfully within that window depending on leg stage count and frame design. Confirm the table’s actual minimum height against your correct seated elbow height, and its maximum against a comfortable standing height for your own body, rather than assuming any table labeled "adjustable" covers your specific range.
Speed, Noise, and Memory Presets
Lift speed commonly falls in the 1 inch per second range for single-motor systems, with dual-motor systems adjusting somewhat faster. For a table you plan to adjust frequently throughout a working session, this speed difference compounds into real time saved or lost across a full day.
Noise level matters more in a shared studio or office environment than in a private workspace, and quieter dual-motor systems are generally preferable if you are adjusting the table while on calls or in earshot of colleagues.
Memory presets, letting you save and instantly return to specific height and tilt combinations, are a genuine convenience feature on higher-end electric tables, particularly useful if you regularly switch between a few consistent configurations, a flat digital-work position and a tilted drawing position, for example, rather than manually resetting both dimensions each time.
Matching Motor Configuration to Your Actual Use
If your setup is light, a single monitor or tablet, standard paper, no heavy mounted equipment: A single-motor system is genuinely sufficient, and the lower cost is not a compromise for this use case.
If you mount heavier peripherals, a full monitor arm setup, a tablet display, substantial reference material, or adjust the table frequently throughout the day: A dual-motor system's higher capacity, faster speed, and better stability under asymmetrical load justify the added cost.
If your work requires tilt beyond roughly 45 degrees: Confirm the specific electric table's actual tilt range before assuming it covers your needs, and consider a manual tilt mechanism if your required angle exceeds what electric tilt motors currently support.
What This Looks Like With VersaDesk

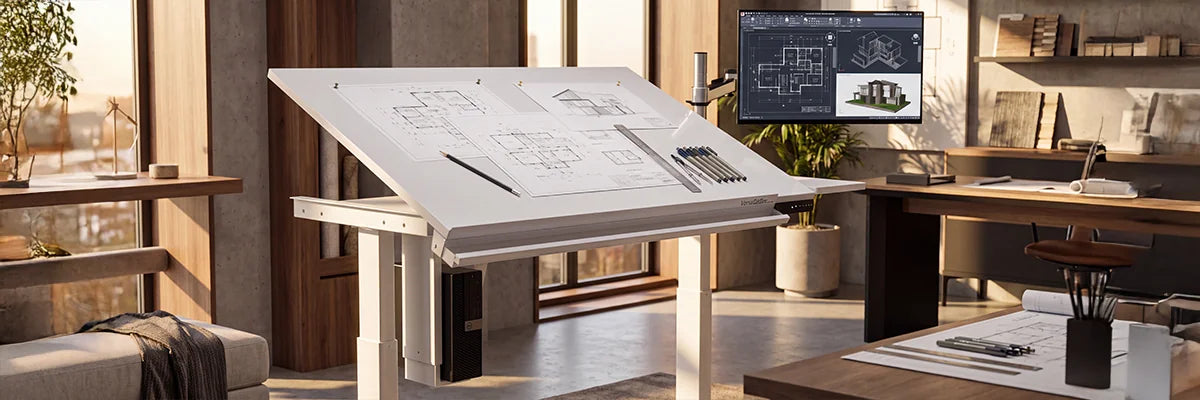

VersaDesk's PowerLift® Electric Drafting Table and PowerLift® Electric Triad Drafting Table provide genuinely electric height and tilt adjustment together, addressing the “true electric” distinction covered at the start of this guide.
For a lighter, more budget-conscious configuration, the Freedom Drafting Table covers the core tilt functionality without the full electric height range, appropriate for the lighter-use scenario described in the matching section above.
The full Drafting Tables, Electric Drafting Tables & Adjustable Drawing Desks collection covers the complete range discussed throughout this guide.
Bottom Line
Not every table marketed as electric adjusts the same way, and the motor configuration behind height and tilt determines real-world performance more than any single headline specification. Confirm both functions are genuinely motorized, match single or dual motor to your actual equipment load, and check tilt range specifically if your work requires a steeper angle than most electric mechanisms currently support. Most importantly, treat lift capacity and tilt capacity as two separate numbers that both need to cover your actual use, not one rating that applies uniformly across the whole table.
Frequently Asked Questions
Is every "electric drafting table" fully electric?
No. Some tables motorize only the height adjustment and still require manual cranking or levering for tilt, despite being marketed as electric. A genuinely fully electric table adjusts both height and surface angle at the push of a button. Confirm both functions are motorized before assuming a table offers complete push-button convenience.
Should I get a single-motor or dual-motor drafting table?
A single-motor system is generally sufficient for lighter setups, a single monitor or tablet with standard drawing tools and no heavy mounted equipment. A dual-motor system is the better choice if you mount heavier peripherals, adjust the table frequently throughout the day, or need the added stability a dual-motor system provides under the asymmetrical loading a tilted, equipped surface creates.
Why does electric tilt have less range than manual tilt?
Motorized tilt actuators currently face real mechanical limitations at steeper angles that a hand-operated lever or crank does not encounter, which is why electric tilt mechanisms commonly max out around 40 to 45 degrees while manual tilt tables often reach 45 to 60 degrees or more. If your work requires an angle beyond roughly 45 degrees, check the specific electric table's actual tilt range carefully, since it may not cover your needs the way a manual mechanism would.
Are lift capacity and tilt capacity the same number?
Not necessarily, and this is frequently misunderstood. Lift capacity measures the vertical force a height motor can move, while tilt capacity measures rotational torque, a different physical quantity describing resistance the tilt motor can overcome. Well-specified tables list these separately, and a table's advertised weight rating for lifting does not automatically apply to how much load it can handle while actively tilting.
What height range should an electric drafting table have?
Most commercially available electric drafting tables fall somewhere within a 26 to 52-inch range, though the specific minimum and maximum vary by model. Check the table's actual minimum against your correct seated elbow height and its maximum against a comfortable standing height for your own body, rather than assuming any table labeled adjustable covers your specific range.
Are memory presets worth having on an electric drafting table?
They are a genuine convenience if you regularly switch between a small number of consistent height and tilt combinations throughout your workday, letting you return to an exact saved configuration instantly rather than manually resetting both dimensions each time. They matter less if you rarely change your table's configuration once set.
