Most triple monitor buying guides show the same photo: three identical screens clamped in a straight row, evenly spaced, facing forward. That is one configuration, and often not the right one for how you actually work. A triple monitor setup involves genuine decisions most single-photo product listings never address: which configuration actually reduces neck strain for your specific workflow, whether your desk can physically support three screens without becoming a walking hazard for cables and clearance, and whether the combined weight of three displays sits anywhere near what the mount is actually rated to hold.
This guide covers what changes specifically when you move from two monitors to three, since the jump is not simply "one more arm."
Three Configuration Types, Not One
Triple monitor mounts are not a single product shape. They fall into three genuinely different arrangements, each solving a different viewing problem.

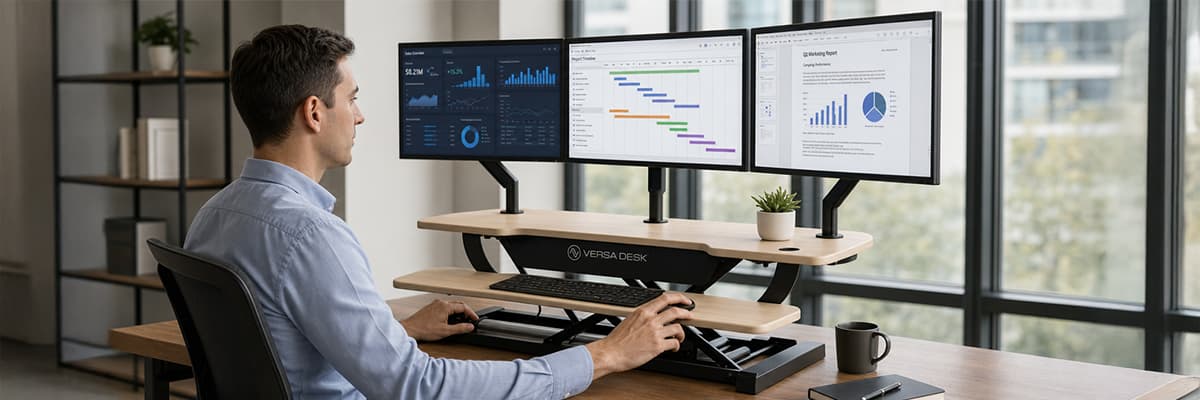

Linear Array
Three screens sit side by side in a straight or nearly straight line, all facing forward at the same depth. This is the simplest configuration to mount and the most desk-space-efficient in terms of footprint, but it places the outer two monitors at a meaningfully greater viewing distance from your eyes than the center screen, which can encourage repeated neck rotation if you use the outer displays for anything beyond glanceable reference material.
Curved or Cockpit Array
The arms angle inward, wrapping the three screens partway around the user in a shallow arc, similar to a cockpit. This configuration keeps all three screens at a more consistent viewing distance from your eyes, which reduces the neck rotation problem that a flat linear array creates. It is the preferred configuration for anyone using all three screens actively and continuously, such as trading, video editing, or simulation work, rather than treating two of the three as occasional reference displays.
Pyramid or 2-Over-1 Configuration
One larger display, often a curved ultrawide, sits at the bottom center, with two smaller monitors mounted above and to each side. This configuration is specifically built for setups combining one primary large display with two secondary reference screens, and it is common in trading, monitoring, and technical workflows where the large central screen carries the primary task while the upper two screens handle secondary information at a glance rather than sustained reading.
Choosing between these three is the first decision in this buying process, and it should be based on how you actually use the three screens, not on which configuration looks most impressive in a product photo. If all three screens carry equal, continuous reading demand, the curved array reduces strain the most. If one screen dominates your attention and the other two are secondary, the pyramid configuration matches that usage pattern directly.
Desk Width and Depth: The Requirement That Increases With Every Screen
A triple monitor setup needs meaningfully more desk width than a dual setup, and the jump is not simply proportional.
Width. Plan for at least 60 inches of usable desk width for a genuine triple monitor array, even with a compact-footprint mount. This accounts for the combined width of three displays plus the spacing needed between them to avoid bezels crowding each other at the edges, and it assumes the mount's base itself does not consume additional width beyond the screens.
Depth. For a linear array, standard desk depth (24 to 30 inches) is usually adequate, since all three screens sit at the same forward position. For a curved or pyramid configuration, confirm the mount's arm reach and your desk's depth together, since the angled or forward-projecting arms in these configurations require more effective depth than a flat linear layout to keep the outer or upper screens at a comfortable viewing distance.
Footprint versus screen count. A well-designed pole-mounted triple arm system can have a strikingly small base footprint, sometimes as little as 12 by 14 inches, since the weight is distributed vertically through a central pole rather than requiring three separate desk-edge clamp positions. This matters more for triple setups than dual ones, since three separate individual clamps along a desk edge consume considerably more linear desk space than one consolidated pole base.
Real Weight Math for Three Displays
Weight capacity math becomes more consequential with a third screen, since the combined load and the mount's structural demands both increase.
Check both per-arm and combined totals. Standard triple monitor mounts commonly rate each arm at roughly 15 to 20 pounds for 24 to 32-inch monitors, with a combined total capacity across all three arms typically in the 30 to 45 pound range. Heavy-duty triple mounts built for ultrawide or large curved displays can rate individual arms considerably higher, in some cases up to 44 pounds per arm, but confirm this explicitly rather than assuming a “heavy-duty” label applies uniformly across all three arm positions.
Pyramid configurations often have asymmetric capacity. In a 2-over-1 pyramid mount, the bottom position supporting the larger central display is frequently rated for a higher weight than the two upper arms, which are sized for smaller secondary monitors. Confirm each position's specific rating rather than assuming a single combined number applies evenly across all three mounting points.
Curved monitor compatibility has a hard limit some buyers miss. Beyond the standard weight and torque considerations that apply to any curved display, some triple monitor mounts explicitly do not support extreme curvature ratings, such as 1000R panels, due to the mount's arm geometry. Confirm your specific monitor's curvature rating against the mount's stated compatibility before ordering, particularly for large curved displays used in the bottom position of a pyramid configuration.
For the full method of calculating monitor weight, including the buffer needed for curved displays and attached accessories, see Standing Desk Weight Capacity: Why It Matters More Than Most People Think.
VESA Compatibility and Screen Size Range
The VESA mounting standard applies to triple setups exactly as it does to single and dual configurations: confirm your monitors use the standard 75x75mm or 100x100mm hole pattern, with an adapter plate typically included for both.
Most triple monitor mounts are designed for a specific screen size range, commonly 13 to 32 inches per display, though pyramid configurations built around a large central ultrawide extend this considerably for the bottom position. If your three monitors are different sizes, confirm each individual arm position's supported size range rather than assuming a single stated range applies to all three uniformly, since this is a common area where pyramid and mixed-size setups run into compatibility problems after purchase.
For the full breakdown of mounting types, clamp versus grommet versus wall installation, and the desk conditions that determine which works for your setup, see Dual Monitor Arm Buying Guide: Mounts, Stands & Adjustable Arms Compared. The same installation checks, edge clearance, edge shape, under-desk obstructions, and tabletop material, apply directly to triple monitor mounting.
Consideration Unique to Triple Setups: Multi-Computer Control
This is a factor that becomes genuinely relevant at three monitors in a way it rarely is at two: a meaningful share of triple monitor users are running more than one computer across the array, not one computer with three screens attached.
If your triple monitor setup spans two or more source computers, whether a work laptop and a personal desktop, or a primary machine and a secondary trading or monitoring system, plan your mount configuration and cable routing around that requirement from the start. A hardware KVM switch, or a software-based control solution, lets you move a single keyboard and mouse across multiple source machines displayed across the triple array, but the physical cable routing for this setup is more involved than a single-computer triple monitor configuration, since each screen may need its own independent video connection back to a different source.
Plan this requirement before finalizing your mount choice, since a pyramid or curved configuration with limited cable channel capacity can become considerably harder to manage cleanly once multiple source computers are added to the mix.
Why This Matters Even More on a Height-Adjustable Desk
Every consideration in this guide needs to hold true across your desk's full sitting-to-standing range, not just at one fixed height.
A height-adjustable desk typically moves through 15 to 20 inches of vertical travel. A triple monitor mount attached directly to the desktop moves with it automatically, which is the correct behavior, but confirm the mount's own height adjustment range still lets you fine-tune each screen's eye-level position independently once the desk itself has moved, since your eye level relative to the desk surface is not identical in the sitting and standing position.
For a pole-mounted triple or quad system specifically, confirm the pole's own height range and the individual arm adjustment range together provide enough combined travel to correct eye level in both positions, not just the desk's movement alone.
What This Looks Like With VersaDesk
For a genuine triple monitor setup, VersaDesk's Pole Mount Spider Monitor Arm provides a central pole-mounted base with independent articulating arms extending from it, consolidating your mounting footprint to a single stable column while still allowing each screen to be positioned individually, whether you are configuring a linear, curved, or asymmetric arrangement.
For setups extending to four displays, or for users who want additional capacity margin beyond a standard triple mount, the Heavy Duty Quad Monitor Arm provides the additional weight and mounting flexibility a larger array requires.
For a two-monitor primary array with room to add a third screen later, VersaDesk's Pole Mount Dual Spider Monitor Arm offers the same consolidated pole-mounted approach at the dual-monitor scale.
For the full comparison of mounting types and installation requirements that apply across single, dual, and triple monitor setups, see Monitor Arms & Multi-Monitor Setup Guide.
A Pre-Purchase Checklist
-
Decide between a linear, curved, or pyramid configuration based on whether all three screens carry equal reading demand or one primary display dominates
-
Confirm your desk provides at least 60 inches of usable width, plus adequate depth for a curved or pyramid configuration's arm reach
-
Calculate combined weight across all three displays, checking both per-arm and total combined capacity, with real margin
-
Confirm each individual monitor's size and, for curved displays, curvature rating falls within the specific arm position's stated compatibility, not just a general range
-
Plan cable routing in advance if your setup spans more than one source computer
-
Verify the mount's own height adjustment range provides enough travel to correct eye level independently in both sitting and standing positions on a height-adjustable desk
Bottom Line
A triple monitor setup is not simply a dual monitor setup with one more arm attached. The configuration decision, linear, curved, or pyramid, changes how much neck rotation your specific workflow actually requires. The weight math becomes more consequential with a third screen in the mix, and pyramid configurations in particular often carry asymmetric capacity across their three mounting positions. Desk width requirements increase meaningfully, and if your setup spans more than one source computer, cable planning becomes a genuine part of the buying decision rather than an afterthought.
Choose the configuration that matches how you actually use three screens, confirm the weight and size compatibility at each individual arm position rather than assuming a single number applies everywhere, and plan your desk space and cable routing before the mount arrives, not after.
Frequently Asked Questions
What is the difference between a linear, curved, and pyramid triple monitor mount?
A linear array places three screens side by side in a straight line, which is the simplest and most space-efficient configuration but puts the outer screens at a greater viewing distance than the center. A curved or cockpit array angles the arms inward, keeping all three screens at a more consistent viewing distance, which suits workflows using all three screens continuously. A pyramid or 2-over-1 configuration places one larger primary display at the bottom center with two smaller secondary screens above, suited to setups where one screen dominates the workflow and the other two serve as glanceable reference displays.
How much desk width do I need for a triple monitor setup?
Plan for at least 60 inches of usable desk width for a genuine triple monitor array. This accounts for the combined width of three displays plus adequate spacing between them, even with a compact-footprint pole-mounted system that consolidates the base to a small central column rather than requiring three separate desk-edge clamps.
How much weight can a triple monitor mount hold?
Standard triple monitor mounts commonly rate each arm at 15 to 20 pounds for 24 to 32-inch displays, with a combined total capacity across all three arms typically in the 30 to 45 pound range. Heavy-duty mounts built for larger or ultrawide displays can rate individual arms considerably higher, but always confirm the specific rating for each arm position rather than assuming a uniform number across all three, particularly in pyramid configurations where the bottom position typically carries a higher rating than the two upper arms.
Can I use three different-sized monitors on a triple mount?
Yes, particularly with a pyramid configuration designed around a larger primary display and two smaller secondary screens. Confirm each individual arm position's supported size range and weight rating separately, rather than assuming a single stated range applies uniformly across all three positions, since mixed-size setups are one of the more common areas where buyers encounter compatibility issues after purchase.
